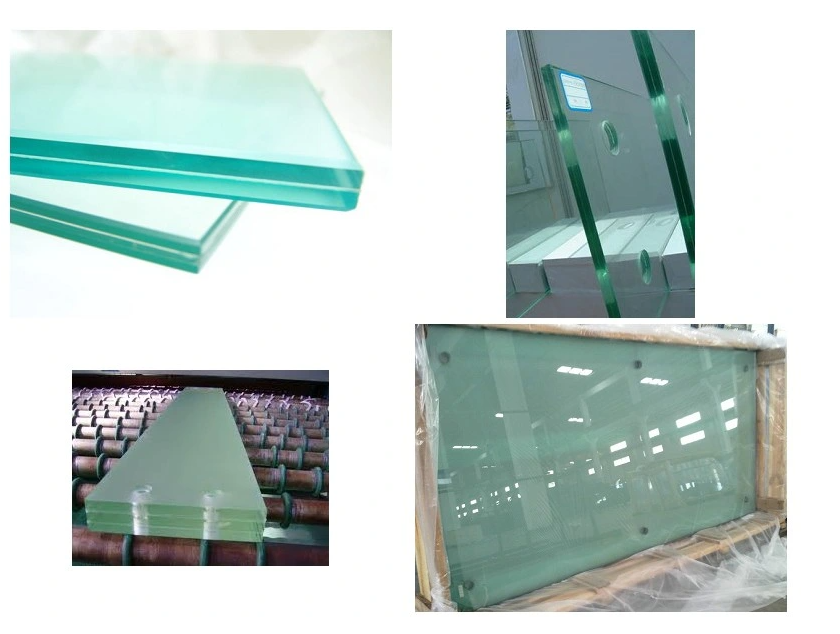

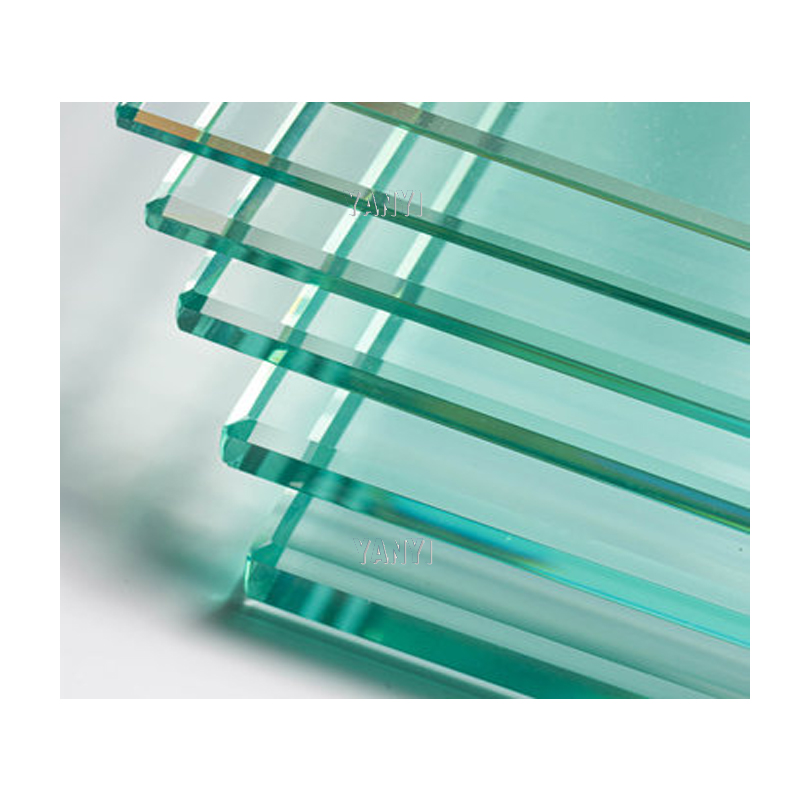

As the name suggests, clear float glass is colourless and highly transparent when viewed face on with a slight green tinge when viewed on edge. If offers a very high level of natural daylight or visible light transmittance to pass through it and little resistance to the sun’s direct solar energy. Thicknesses produced range from 2mm to 25mm. It is also named Float glass in many cases

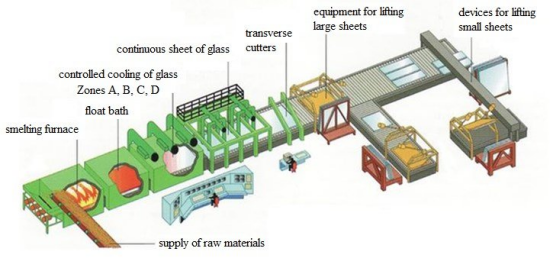

Float glass is made by pouring molten glass mixture from a furnace into a chamber containing a bed of molten tin. This process is sometimes called the Pilkington process. The atmosphere inside is strictly controlled. The glass floats on the tin and forms the shape of the container. Out of the tin chamber, the glass is sent into an oven called a lehr. it cools slowly at a specific rate there. This annealing process helps relieve the glass's internal stress. Cooling speed is critical to the success of the final product. And then cut to the proper size.
-The glass produced by Yanyi Glass is stable and of high flatness, we uses the top raw materials to make sure the output glass panels are of good quality, which will affect the performance of the further processing like tempering, As tests showed, Yanyi glass will down the exploration rate by 20% compared with the other brands
-Yanyi Glass will offer you different choices, whether you need top quality ones or a cost-effective glass sheets, Yanyi Glass is your choices
-Fast responds and delivery, we have special team at your service always, and Yanyi has a mass stock for the normal glass types, you could get your need at the earliest
-Special financial support, Various payment terms available and we have many supporting projects for our partners, contact your Yanyi consultant to get more details
Glass with different thickness is applied in different cases, usually the 3-5mm clear glass is for some household uses, while the thicker glass sheets will be used in the commercial buildings. Clear glass will always be further proceed to be tempered glass, laminated glass, coated glass, so it is also called raw glass sometimes.
Basic Character | ||
Characteristic | Symbol | value and unit |
Density (at 18 °C) | ρ | 2,500 kg/m³ |
Characteristic bending strength | f | 45 x 106 Pa |
Resistance to temperature differentialand sudden temperature change | 40 ℃ | |
Melting temperature | ≈ 1,550℃ | |
Glass transition temperature | ≈ 630℃ | |
Light transmission (clear float 4mm) | τv | ≤90% |
Solar factor (clear float 4mm) | g | 87% |
Normal emissivity | 0.89 | |
Specifications | Thickness/mm | Minimum visible light transmittance/ % |
2 | 91 | |
3 | 90 | |
4 | 89 | |
5 | 88 | |
6 | 87 | |
8 | 85 | |
10 | 83 | |
12 | 81 | |
15 | 78 | |
19 | 74 | |
22 | 71 | |
25 | 69 |
